Conformatic™ AL Creping Holder
‌

‌How Does the Conformatic™ AL Creping Holder Work?                                          Significant upgrades to the holder’s adjustability was achieved with a proprietary adjustment mechanism allowing for precise control of the holder profile across the entire Yankee face. The robust construction is designed for high-performance tissue machines and features a self-conforming liquid tube, a backup blade, and a quick removal feature that allows the holder to be removed for cleaning and maintenance.

Automation systems for Printing Houses or for Converting‌

‌Sicma can supply all the systems typically necessary in the Printing Houses for packaging, editions, daily newspaper and special applications.

The range of products includes, besides the specific warehouses, all the solutions finalized to the automatic handling by means of automatic cranes and printing cylinders picking-up for the operations of washing, turning, chrome plating, copper plating and engraving.

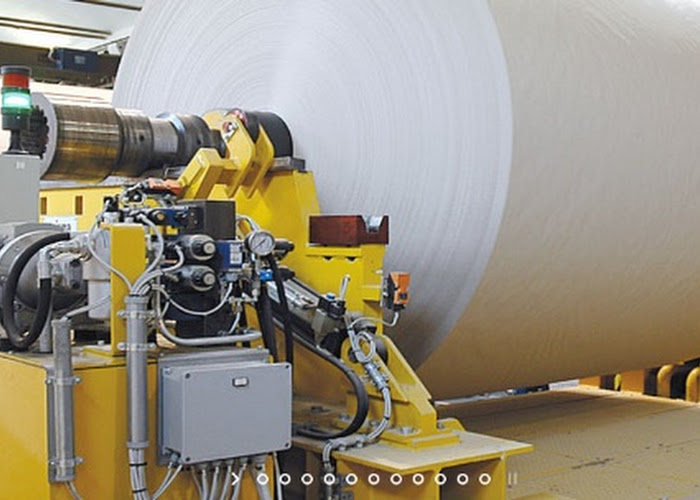

The product line also propose the automation of the roll loading/unloading operations from the Rotary Presses, Printing Machines and Winders as, in example, travelling shuttles, conveyors, lifting platforms, unwrapping stations.

Pulper feeding
‌

‌Sicma can design and manufacture many different and possible plant architectures for feeding the pulpers in the Paper Mills.

The handling systems can include the storage of the virgin pulp bales for type in units or as single bales, the automation of the unit destacking in single bales, the manual or fully automated wires cutting and removal system from the unit, the single pulp bales or the waste paper bales, the conveying system to distribute the recipes to the different pulpers.

Wire Winder
‌

‌Sicma produces two different types of machinery to allow easy disposal of the steel wires removed from the unit and from the single bales: the traditional Wire Winder for single bale steel wires, (more than 250 references,) is characterized by its small size and simple installation that only requires a simple connection to the electrical supply for a power consumption of 4 kW and to the pneumatic supply for an operating pressure of 2 bar; and the Wire Winder for unit, that is recommended for the harder and longer steel wires taken  from the unit (two stacks of 3-4 bales).

TM SYSTEMS

핀란드에 소재한 산업용 에어 설비를 전문으로 취급하는 45년의
역사를 가진 기업으로,  제지공장에서 생산량을 증가시키고  에너지를
절약하는 산업용 에어 솔루션 설비를 전세계 여러 업체에 공급
해오고 있습니다.

Trim edge 핸들링 설비와 heat recovery solution 설비등을 설계
공급하고 있습니다.
‌
‌https://tmsystems.com

 Wet end exhaust: Reduce the humidity and heat load

The wet end of the paper machine produces most of the heat and moist air leaks into the machine hall. Thus the wet end exhaust plays a key role as far as the machine hall air flow dimensioning is considered.
‌

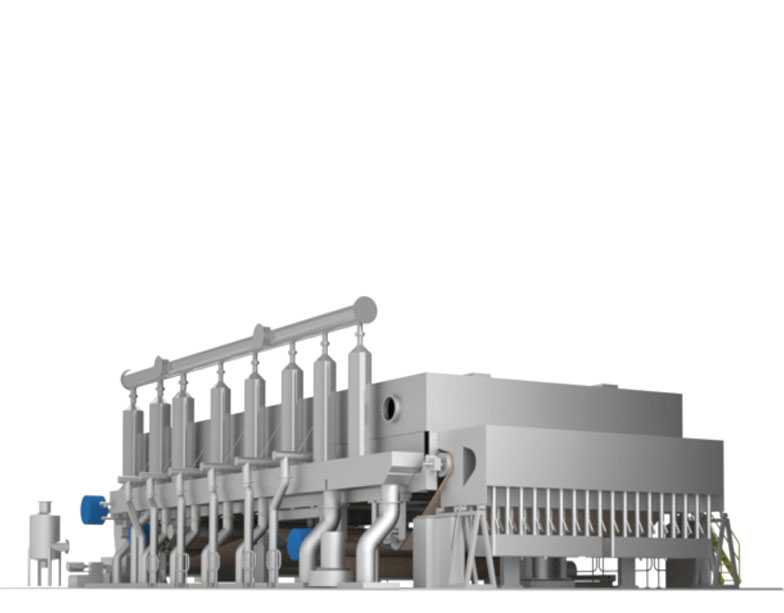

Heat recovery solutions: Lower energy consumption and higher productivity

TM Systems is very aware of the energy challenges and the pressure toward environment-friendly operations in different process industries. Therefore we have put extra effort to further develop energy saving solutions, including top of the line heat recovery systems. We deliver solutions that cut energy costs and enable more environmentally friendly production.

Runnability Components: Fewer breaks with Vacubox® web stabilizers

It’s all about stability and contact. Dryer sections are often single felted in order to improve paper machine runnability at higher speeds. The paper tends to lift off the dryer fabric mainly at the closing nips. This causes wrinkles and web breaks, as well as other problems. Our Vacubox® web stabilizers keep the paper in good contact with the fabric thus preventing web flutter and instability.

Trimvac®: Measurable efficiency for your trim system‌

‌Looking for energy-efficiency and scalability to your trim system? Take a closer look at TM Systems’ Trimvac® wet separator trim handling system – the result of long-term R&D and world-wide leadership in its field.

 Rochling  Industrial Oepping GmbH & Co. KG

제지 기계용 웨어 파트의 선도적 혁신기업인 로클링 인더스트리얼
오핑사는 인더스트리 4.0 세대 미래형 테마를 다룬 최초의 기업으로,
로바스마트라는 새로운 "스마트" 제품군을 개발하고 있습니다.


http://leripa.com

Intelligent suction roll system

In the zone of the suction rolls, wear parts with sensors that measure the temperature, wear, water flow quantity and noise are controlled through software.

Intelligent forming section

In the area of the forming section, dewatering elements are controlled; they are adjusted manually or automated, horizontally or vertically, to enhance the paper quality.

Sheets and Blocks‌

‌As a part of our extensive range of semi-finished products made of thermoplastics, you will receive sheets and blocks made of thermoplastics. We offer you sheet and blocks made of:

Profiles and welding rods for tank building‌

‌Röchling offers a wide range of square tubes, U-profiles and welding rods for the chemical device and tank building industry.
Polystone® square tubes and U-profiles are manufactured from the same molding material, such as the associated welding rods and the sheets. This ensures identical material properties and processability best for the whole container.

Product range Square tubes‌

‌

Product range U-Profiles‌

‌

Product range Welding Rods‌

‌

Milltex S.p.A.

1987년에 설립된 밀텍스는 제지 산업용 설비의 개조를 통하여
생산 제품의 품질과 생산성을 향상시키는 사업을 시작하였습니다.
특수 설비의 엔지니어링과 구축에서 습득한 경험을 바탕으로,
현재의  종이, 박스지용 가공 기계의 영역으로 까지 점차적으로
업무 영역을 확대하여 왔습니다.
현재 전세계에 1,400 여대의 설비를 유럽과 미국을 비롯한 아메리카와
중국, 동남아시아, 그리고 국내에 공급한 실적을 갖고 있습니다.
‌
‌
‌https://milltex.it

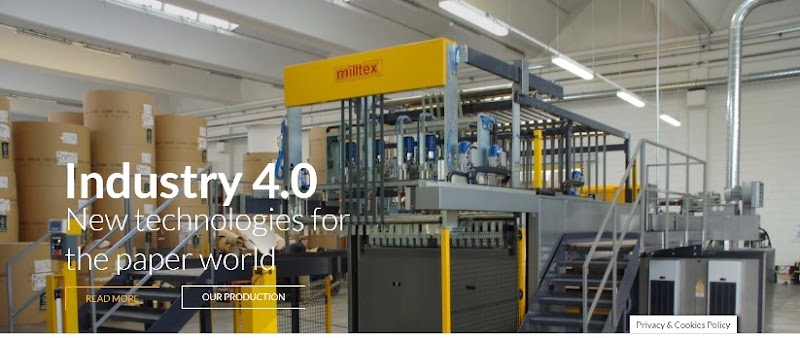

‌Particularly Milltex is able to construct and deliver the following machines.‌

‌Syncro sheeters

• Syncro sheeters
• Slitters rewinders
• Embossing – wrapping
• Unwinding
• Transport and handling paper rolls
• Accessories for the paper industry

Syncromaster‌

‌Sheeters for paper and boardThis range of sheeters is designed to
provide high performance with high cut quality. The technology of this construction satisfies the operator’s request to have a very simple way
to operate on the sheeter under all working conditions, with easy change of both format and production parameters. Milltex created the variable geometry on the cutting unit to fit the cutting angle to different paper
or board type for the achievement of the best clearness in the transversal cut.

Syncroflex DIGI

Cut size for ream (digit formats)
The Syncroflex Digi has a cutting range between 210 mm length and 600 mm length.
The machine is equipped with pocket to collect the ream and a pincers for the ream exit. A transversal conveyor belt is positioned in front of the pincers to collect the ream and to transport the same in left or right way.

Syncroflex‌

‌Sheeter direct drive with only one cutting motor. This sheeter is designed for paper and board with a studied flexibility to have a maximum performance also For the small formats and when the production request small quantity per format. The flexibility of this sheeter is important for the range of format and for the fast time for the format change.
Small format ( from 250 to 600 mm). This small formats are cut with high speed thanks a new electronic cutting system “Dual Top”
Normal format (from 500 to 1600 mm). This formats are cut with the same Milltex technologies that are used in the SincrMaster sheeters.

Top type unwinder‌

‌Shaftless Unwinds to taken the reels directly from floor. The expanding shaft are made with a automatically mechanically system of expansion. The brake can be in one side or two side by pneumatic brake or by motor. The web tension control can be made by degressive system or by load cell. The expanding shafts can be with one diameter per type or with two diameter each. They are available with all the core diameters possible. The reel introduction can be made from left / right side or from back side

 Cellwood Machinery

셀우드 장비는 전세계에서 매일 150만 그루의 나무가 벌목되는 것을
막아주고 있습니다.    이는 폐지를 재활용하는 전세계 수백 개의 제지
공장에서 가동중인 당사 기계 시스템에 의해서 가능해지게 되었습니다.
우리의 해결책의 핵심 가치는 종이의 품질을 높임과 동시에, 생산과정
에서 소요되는 에너지를 절감하는데 있습니다.
펄프와 종이 산업분야에서 우리는 확산 시스템뿐 아니라 펄퍼와
마이크로필터 같은 다른 제품군에서도 세계적으로 선도적인 공급
업체입니다.
또한, 최근에는 유기폐기물 전처리 솔루션으로 바이오에너지 산업에도
적극 나서고 있습니다.
‌
‌
‌https://cellwood.se

Hot Dispersing System (HDS)‌

‌As the most advanced system the HDS produces the best dispersing results. It is also the most flexible system, with optional features such as in-line bleaching. The key feature of hot dispersing is treatment with high temperature at high pulp consistency.

Ultra Compact Dispersing System (UCD)‌

‌The UCD system consists of only three machines: screw press, infeeder/steamheater, and disperser. This solution offers the most compact design possible, something that saves both plant space and investment cost.

Microfilters‌

‌Safe re-use of process water
Algas microfilters recover useable fiber, and save energy by enabling safe re-use of process temperature water.

Bioenergy‌

‌Reject removal from organic substratePre-treatment of household waste with efficient removal of plastics and grit.

자료 검색및 다운로드 안내

Cellwood 제품에 대한 상세한 기술 문서는 아래 링크 주소를 마우스로
클릭하시면, 해당 페이지로  이동한 후 다운로드 하실 수 있습니다.
Dispersers and other Krima products ;

Dispersing system description - >
 http://cellwood.se/wp-content/uploads/2017/06/Dispersing-system-description.pdf
Dispersing system types HDC, CDS, UCD - >
http://cellwood.se/wp-content/uploads/2017/06/Dispersing-system-types-HDS-CDS-UCD.pdf
Disperser type KD - >
http://cellwood.se/wp-content/uploads/2017/06/Disperser-type-KD.pdf
Refiner type KR - >
http://cellwood.se/wp-content/uploads/2017/06/Refiner-type-KR.pdf
Screw press type KSR - >
http://cellwood.se/wp-content/uploads/2017/06/Screw-press-type-KSR.pdf

Our mission
Meeting the needs of our time

Meeting the needs of our time is the raison d’être of the John Cockerill Group. While the world changes more and more rapidly, it also faces more and more complex challenges: diminishing resources, population growth, globalization of the economy, etc.
At John Cockerill, our ambition is to combine the expertise gained from our long-standing tradition and the technologies born of our spirit of innovation to develop unique large-scale technical solutions. Solutions capable of supplementing the measures to be taken at the political, educational, economic and societal levels.
The services and equipment that we offer are efficient and sustainable.
There are five major areas in which we want to provide our added value in the years to come:

• Preserving natural resources;
• Producing sustainably;
• Contributing to greener mobility;
• Fighting against insecurity;
• Facilitating access to renewable energy.

Industrial water

Those involved in the industrial domain are high consumers of water. Whether used as thermal fluids in cooling systems or to feed boilers, or indeed re-used in industrial processes themselves, industrial waste water has to be treated and purified with great care in order to achieve the required physical and chemical properties.
‌
‌Neyrtec®, dehydration of paper industry sludge

Air de-pollution‌

‌The quality of the air is a growing problem, particularly in the industrial sector. Conscious of the implications of pollution and determined to provide responses, John Cockerill Environment supplies complete gaseous waste treatment, including effluents, odors and COV solutions, along with ventilation and energy recuperation solutions.

International Knife & Saw, Inc.

High-Quality Industrial Blades & Knives

인터내셔널 나이프 앤 쏘(IKS)는 고품질 산업용 기계 칼과 블레이드의
선도적인 제조 및 공급 업체입니다.
개인 소유의 미국 회사인 IKS는 전 세계 고객에게 절단 도구, 기술 컨설팅 서비스, 모범 사례 교육 프로그램 및 OEM 장비 업그레이드를 제공합니다.
‌
‌
‌https://iksinc.com

Lubricants

Our lubricants and spray systems are designed to increase productivity while decreasing unnecessary downtime. We offer a variety of spray systems and our technical staff is here to help you select the right one for your unique application.
IKS’ lubricants/spray systems are water-based, non-flammable, and are food-grade safe.

Our lubricants/spray systems also:

Keep the log saw blade and grinding wheels free of glue
Maintain consistent quality cuts
Prevent dirt buildup on products
Eliminate saw room mess and excessive cleaning downtime.

Log Saw Blades

Made only in the United States and handcrafted by some of the most talented craftsmen in the world, our log saw blades have a reputation for exceeding even the most demanding requirements.
We impose strict process control standards to ensure that our customers receive high-quality log saw blades each time they order. In addition to quality control, we use a triple tempering heat treating process designed to maintain uniform blade hardness and flatness. All IKS log saw blades go through rigorous grinding and beveling operations to ensure superior surface finish and dimensional accuracy.

Red-Ray High Intensity Gas-Fired Infrared Burner‌

‌Selas’ latest innovation is designed exclusively for paper drying and uses less energy than current emitters on the market. It reduces energy costs and lowers emissions.

Three models available in capacities ranging from 34,125 BTU/hr (KW) to 40,950 BTU/hr (KW)

Industry Leading Energy Efficiency

• More Powerful for Increased Drying Capacity
• Lower Energy Costs
• Reduced NOx Footprint
• Simple and Easily Implemented Retrofit
• High Tensile Strength
• Resistant to Water and Coating Damage

Knife gate valve MV

Stafsjö’s knife gate valve MV can be used within a wide range of applications on both dry and wet media such as pulp stock up to 7% concentrations, sludge, slurry, biomass, water, ash, granulate and different kinds of waste.

Stafsjö’s gland box system with TwinPack braids ensures that no media reaches the surrounding environment. It can also be reinforced with a box bottom scraper or with a double gland for the most demanding applications.
The MV valve is available in size ranging from DN 50 up to DN 1600 (2” to 64”).
Futher information is available in the product data sheet.
